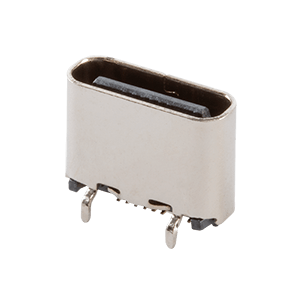

UJ20-C-V-C-1-SMT-TR
Type C, USB 2.0, 480 Mbps, 20 Vac, 5 A, Free- line, Gold Plated 1u,Dip Shell, 12 pin, USB Plug Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| USB Type | Type C |
|
| USB Standard | USB 2.0 |
|
| Data Transfer Speed | 480 Mbps |
|
| Mounting Style | Surface Mount |
|
| Orientation | Vertical |
|
| Voltage Rating | 20 |
|
| Input Type | Vac |
|
| Current Rating (A) | 5 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
| Series | UJ20 |
|
