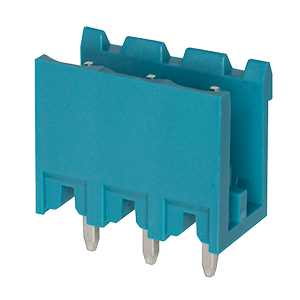

TBP04R3-500 Series

TBP04R3-500 Series
TBP04R3-500 Series Alternate View Green
TBP04R3-500 Series Alternate View Green

TBP04R3-500 Series

2~24 Poles, Pluggable, Receptacle, Vertical, 5.0 Pitch, Terminal Block Connector

Datasheet

Features

UL and CE safety approvals

Options

2~24 pole counts

Specifications

Type Description
Select
Connector Type Receptacle
Orientation Vertical
Pitch (mm) 5
UL Current Rating (A) 15
UL Voltage Rating (Vdc) 300
IEC Current Rating (A) 10
IEC Voltage Rating (Vdc) 400
Operating Temp Range (°C) -40 ~ 105
Dimensions WxH (mm) 8.5 x 16
Dimensions WxH (in) 0.33 x 0.63
Series TBP04R3-500

Other Resources

Connector Mating Guide

Customize Your Part

Configured Part Number
