TBP04P1-500 Series

TBP04P1-500 Series
TBP04P1-500 Series Alternate View Green
TBP04P1-500 Series Alternate View Green

TBP04P1-500 Series

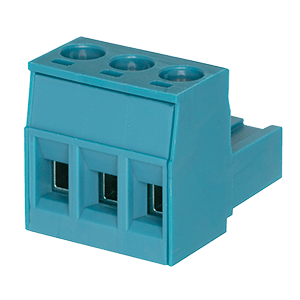

2~24 Poles, Pluggable, Horizontal, 5.0 Pitch, 28~12 (AWG), Terminal Block Connector

Datasheet

Features

UL and CE safety approvals

Options

2~24 pole counts

Specifications

Type Description
Select
Connector Type Plug
Orientation 180°
Pitch (mm) 5
UL Current Rating (A) 15
UL Voltage Rating (Vdc) 300
IEC Current Rating (A) 10
IEC Voltage Rating (Vdc) 630
Wire Gauge (AWG) 28~12
Operating Temp Range (°C) -40 ~ 105
Dimensions WxH (mm) 18.1 x 15.05
Dimensions WxH (in) 0.71 x 0.59
Series TBP04P1-500

Technical Docs

Datasheet 3D Model

Other Resources

Connector Mating Guide

Customize Your Part

Configured Part Number

Buy from Same Sky
