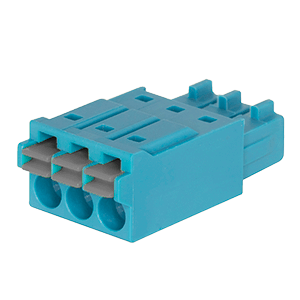

TBP03P2-350 Series

TBP03P2-350 Series
TBP03P2-350 Series Alternate View Green
TBP03P2-350 Series Alternate View Green
TBP03P2-350 Series Alternate View Green

TBP03P2-350 Series

2~24 Poles, Pluggable, Vertical, 3.5 Pitch, 24~16 (AWG), Terminal Block Connector

Datasheet

Features

UL and CE safety approvals

Options

2~24 pole counts

Specifications

Type Description
Select
Connector Type Plug
Orientation 180°
Pitch (mm) 3.5
UL Current Rating (A) 8
UL Voltage Rating (Vdc) 300
IEC Current Rating (A) 8
IEC Voltage Rating (Vdc) 320
Wire Gauge (AWG) 24~16
Operating Temp Range (°C) -40 ~ 105
Dimensions WxH (mm) 22.8 x 7.7
Dimensions WxH (in) 0.9 x 0.3
Series TBP03P2-350

Technical Docs

Datasheet 3D Model

Other Resources

Connector Mating Guide

Customize Your Part

Configured Part Number
