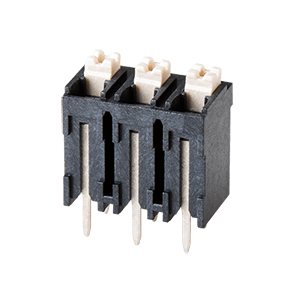

TBLH10V-508 Series

2~12 Poles, Screwless, Vertical, 5.08 Pitch, 24~16 (AWG), Terminal Block Connector

Datasheet

Specifications

Type Description
Select
IEC Current Rating (A) 17.5
IEC Voltage Rating (Vdc) 160
UL Current Rating (A) 10
UL Voltage Rating (Vdc) 300
Orientation Vertical
Wire Gauge (AWG) 24~16
Pitch (mm) 5.08
Dimensions WxH (mm) 8.5 x 14.2
Dimensions WxH (in) 0.33 x 0.56
Series TBLH10V-508

Other Resources

Customize Your Part

Configured Part Number
