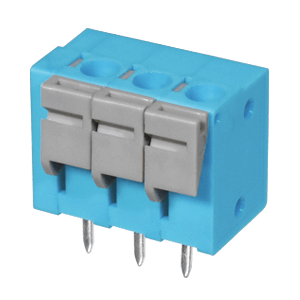

TBL004V-508 Series
TBL004V-508 Series Green
TBL004V-508 Series Orange
TBL004V-508 Series Yellow
TBL004V-508 Series Gray
TBL004V-508 Series Black

TBL004V-508 Series

2~24 Poles, Screwless, Vertical, 5.08 Pitch, 24~14 (AWG), Terminal Block Connector

Datasheet

Features

Interlocking
UL safety approvals

Options

2~24 pole counts
Multiple color options

Specifications

Type Description
Select
Orientation Vertical
Pitch (mm) 5.08
UL Current Rating (A) 10
UL Voltage Rating (Vdc) 300
IEC Current Rating (A) 15
IEC Voltage Rating (Vdc) 320
Wire Gauge (AWG) 24~14
Dimensions WxH (mm) 13.3 x 13.6
Dimensions WxH (in) 0.52 x 0.54
Series TBL004V-508

Other Resources

Customize Your Part

Configured Part Number
