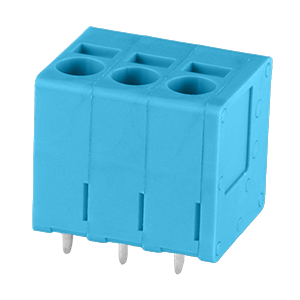

TBL-0020-500 Series
2 -20 Poles, Screwless, Vertical, 5.0 Pitch, 24~12 (AWG), Terminal Block Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Orientation | Vertical |
|
| Pitch (mm) | 5 |
|
| Wire Gauge (AWG) | 24~12 |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| Dimensions WxH (in) | 0.53 x 0.57 |
|
| Dimensions WxH (mm) | 13.5 x 14.4 |
|
| UL Current Rating (A) | 20 |
|
| UL Voltage Rating (Vdc) | 300 |
|
| IEC Current Rating (A) | 24 |
|
| IEC Voltage Rating (Vdc) | 250 |
|
| Series | TBL-0020-500 |
|
