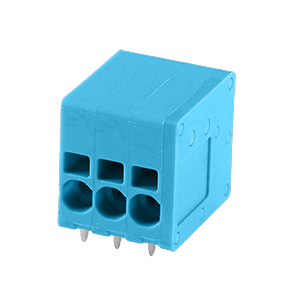

TBL-0019-350 Series
2 -6 Poles, Screwless, Horizontal, 3.50 Pitch, 24~16 (AWG), Terminal Block Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| Orientation | Horizontal |
|
| Pitch (mm) | 3.5 |
|
| Wire Gauge (AWG) | 24~16 |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| Dimensions WxH (in) | 0.53 x 0.55 |
|
| Dimensions WxH (mm) | 13.5 x 14 |
|
| UL Current Rating (A) | 10 |
|
| UL Voltage Rating (Vdc) | 300 |
|
| IEC Current Rating (A) | 17.5 |
|
| IEC Voltage Rating (Vdc) | 160 |
|
| Series | TBL-0019-350 |
|
