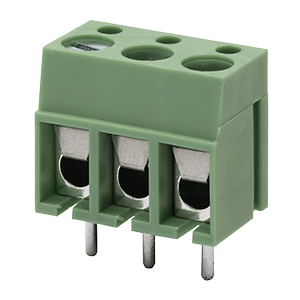

TB0010-500 Series
2~12 Poles, Screw Type, Horizontal, 5.0 Pitch, 22~14 (AWG), Terminal Block Connector
Specifications
| Type | Description | |
|---|---|---|
| Screw Type | Slotted |
|
| Orientation | Horizontal |
|
| Pitch (mm) | 5 |
|
| Wire Gauge (AWG) | 22~14 |
|
| Operating Temp Range (°C) | -40 ~ 105 |
|
| Dimensions WxH (in) | 0.49 x 0.35 |
|
| Dimensions WxH (mm) | 12.5 x 9 |
|
| UL Current Rating (A) | 16 |
|
| UL Voltage Rating (Vdc) | 250 |
|
| IEC Current Rating (A) | 24 |
|
| IEC Voltage Rating (Vdc) | 250 |
|
| Series | TB0010-500 |
|
