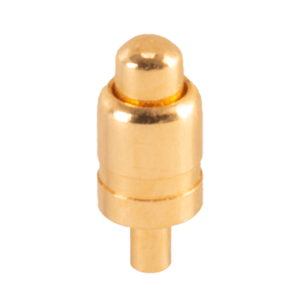

CPG-48-TH-TR
45 gf Initial Operating Force, 55 gf Mid Compression Operating Force, Spring Loaded, Gold Plated, Through Hole, Pogo Pin
Specifications
| Type | Description | |
|---|---|---|
| Mounting Style | Through Hole |
|
| Recommended Working Height (mm) | 1.75 |
|
| Minimum Working Height (mm) | 1.65 |
|
| Pad Layout Dimension (mm) | 1.5 |
|
| Plunger Size (mm) | 1.25 |
|
| Overall height (mm) | 2.2 |
|
| Full Stroke Capability (mm) | 0.55 |
|
| Mid Stroke (mm) | 0.45 |
|
| Barrel Contact Finish Thickness (µm) | 0.1 |
|
| Barrel Contact Finish Thickness (µin) | 3.98 |
|
| Plunger Contact Finish Thickness (µm) | 0.25 |
|
| Plunger Contact Finish Thickness (µin) | 4.92 |
|
| Barrel Diameter (mm) | 1.2 |
|
| Flange Diameter (mm) | 1.25 |
|
| Initial Operating Force (gf) | 45 |
|
| Mid Compression Operating Force (gf) | 55 |
|
| Contact Finish | Gold Plated |
|
| Contact Material | Brass Alloy |
|
| Spring | Stainless steel (SUS 304) |
|
