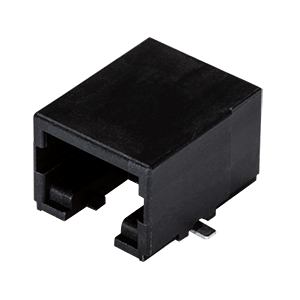

CRJ055-1-TH
CRJ055-1-TH
CRJ055-1-TH Alternate View
CRJ055-1-TH Alternate View

CRJ055-1-TH

8P8C, Single Port, Horizontal, Unshielded, No LED, Through Hole, RJ45 Modular Connector

Datasheet

Specifications

Type Description
Select
Connector Type RJ45
Number of Positions/Contacts 8P8C
Number of Ports 1
Integrated Magnetics No
LED No
Mounting Style Through Hole
Tabs No
Orientation Horizontal
Shielding No
Dimensions LxWxH (in) 0.71 x 0.59 x 0.45
Dimensions LxWxH (mm) 18.1 x 15 x 11.5
