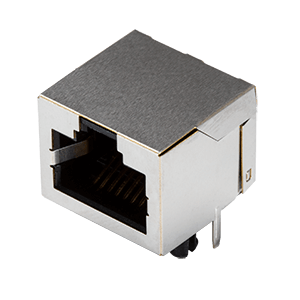

CRJ044-5-TH
8P8C, Single Port, Horizontal, No LED, Shielded, Through Hole, 50 µin Plating, RJ45 Modular Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | RJ45 |
|
| Number of Positions/Contacts | 8P8C |
|
| Number of Ports | 1 |
|
| Integrated Magnetics | No |
|
| LED | No |
|
| Mounting Style | Through Hole |
|
| Tabs | No |
|
| Orientation | Horizontal |
|
| Shielding | Yes |
|
| Contact Plating Thickness | 50 µin |
|
| Series | CRJ044 |
|
| Dimensions LxWxH (mm) | 15.75 x 16.51 x 13.46 |
|
| Dimensions LxWxH (in) | 0.62 x 0.65 x 0.53 |
|
