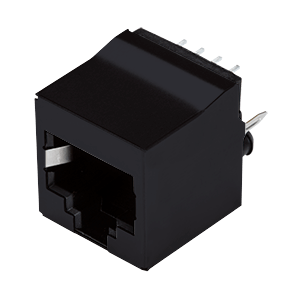

CRJ041-5-TH
8P8C, Single Port, Vertical, No LED, Unshielded, Through Hole, 50 µin Plating, RJ45 Modular Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | RJ45 |
|
| Number of Positions/Contacts | 8P8C |
|
| Number of Ports | 1 |
|
| Integrated Magnetics | No |
|
| LED | No |
|
| Mounting Style | Through Hole |
|
| Tabs | No |
|
| Orientation | Vertical |
|
| Shielding | No |
|
| Contact Plating Thickness | 50 µin |
|
| Series | CRJ041 |
|
| Dimensions LxWxH (mm) | 15.78 x 15.26 x 16.29 |
|
| Dimensions LxWxH (in) | 0.62 x 0.6 x 0.64 |
|
