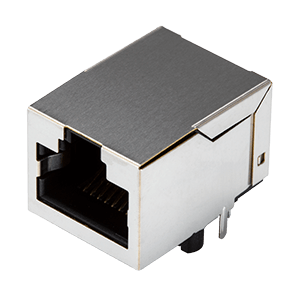

CRJ002-ML1-TH
10/100/1000 BaseT, 8P10C, Single Port, Horizontal, Shielded, LED, Through Hole, RJ45 with Integrated Magnetics Modular Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | RJ45 |
|
| Number of Positions/Contacts | 8P10C |
|
| Number of Ports | 1 |
|
| Speed (BaseT) | 10/100/1000 |
|
| Integrated Magnetics | Yes |
|
| LED | Yes |
|
| LED Color | Yellow/Green |
|
| PoE | No |
|
| Tabs | No |
|
| Orientation | Horizontal |
|
| Mounting Style | Through Hole |
|
| Shielding | Yes |
|
| Dimensions LxWxH (in) | 0.85 x 0.62 x 0.54 |
|
| Dimensions LxWxH (mm) | 21.6 x 15.85 x 13.6 |
|
