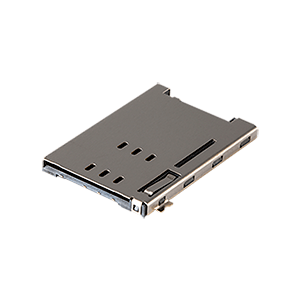

SIM-10-A
SIM Card Connector, 10 Positions, Connector and Ejector, Push In, Auto Eject Out, Surface Mount, 1.85 mm haight Above Board, Gold Flash
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Connector and Ejector |
|
| Compatible Card | SIM Card |
|
| Mounting Style | Surface Mount |
|
| Removal Method | Push In, Auto Eject Out |
|
| Number of Positions | 10 |
|
| Contact Finish | Gold Plated |
|
| Height Above Board (mm) | 1.85 |
|
| Card Detect Switch | Yes |
|
| Contact Finish Thickness | Gold Flash |
|
