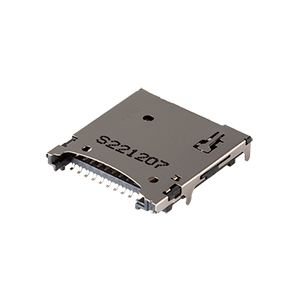

MSD4-1-A
Micro SD 4.0 Card Connectors, 19 Positions, Connector and Ejector, Push In, Auto Eject Out, Surface Mount, 2.25 mm Height Above Board, 3u" Gold
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Connector and Ejector |
|
| Compatible Card | SD 4.0 Card |
|
| Mounting Style | Surface Mount |
|
| Removal Method | Push In, Auto Eject Out |
|
| Number of Positions | 19 |
|
| Contact Finish | Gold Plated |
|
| Height Above Board (mm) | 2.25 |
|
| Card Detect Switch | Yes |
|
| Contact Finish Thickness | 3 µin |
|
