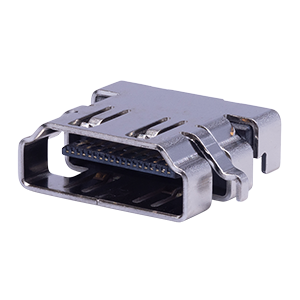

HD07-19-RVS-MSMT-TR
HDMI 2.0, Receptacle Connector, 19 Positions, Horizontal, Reversed, Mid-Surface Mount
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| HDMI Type | Type A |
|
| Mounting Style | Mid-Surface Mount |
|
| Orientation | Horizontal |
|
| HDMI Standard | HDMI 2.0 |
|
| Number of Contacts | 19 |
|
| Number of Ports | 1 |
|
| Voltage Rating (Vdc) | 40 |
|
| Current Rating (A) | 0.5 |
|
| Termination | PCB |
|
| Mating Cycles | 10000 |
|
| Dimensions WxH (in) | 0.73 x 0.22 |
|
| Dimensions WxH (mm) | 18.5 x 5.6 |
|
| Shielding | No |
|
