PR-1135
PR-1135 Alternate View

PR-1135

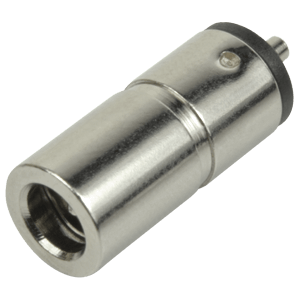

1.0 x 3.6 mm, Overmold, Dc Power Receptacle Connector

Datasheet

Specifications

Type Description
Select
Connector Type Receptacle
Inner Diameter (mm) 1
Outer Diameter (mm) 3.6
Insertion Depth/Length (mm) 9.5
Mounting Style Cable - Overmold
Orientation Vertical
Voltage Rating (Vdc) 24
Current Rating (A) 5
Number of Conductors 2
Internal Switch(es) 0
Shielding No
