PPM-2-35135-B

PPM-2-35135-B

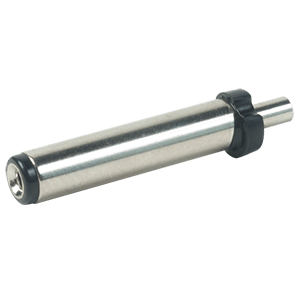

1.35 x 3.5 mm, Overmold, Dc Power Plug Connector

Datasheet

Specifications

Type Description
Select
Connector Type Plug
Inner Diameter (mm) 1.35
Outer Diameter (mm) 3.5
Insertion Depth/Length (mm) 16
Mounting Style Cable - Overmold
Voltage Rating (Vdc) 24
Current Rating (A) 3
Number of Conductors 2
Internal Switch(es) 0
Shielding No

Technical Docs

Datasheet 3D Model
