PPM-2-3511-SG1
PPM-2-3511-SG1 Alternate Variation

PPM-2-3511-SG1

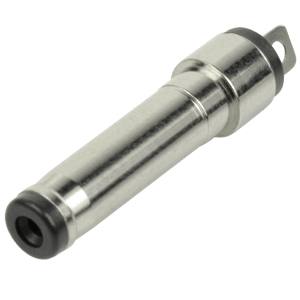

1.1 x 3.5 mm, Overmold, Dc Power Plug Connector

Datasheet

Specifications

Type Description
Select
Connector Type Plug
Inner Diameter (mm) 1.1
Outer Diameter (mm) 3.5
Insertion Depth/Length (mm) 11.6
Mounting Style Cable - Overmold
Orientation Vertical
Voltage Rating (Vdc) 24
Current Rating (A) 5
Number of Conductors 2
Internal Switch(es) 0
Shielding No

Technical Docs

Datasheet 3D Model
