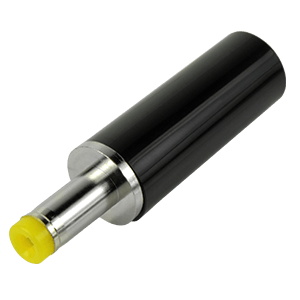

PP3-013
PP3-013 Alternate Version

PP3-013

1.7 x 4.0 mm, Round Cover, Modular, Dc Power Plug Connector

Datasheet

Specifications

Type Description
Select
Connector Type Plug
Inner Diameter (mm) 1.7
Outer Diameter (mm) 4
Insertion Depth/Length (mm) 9.5
Mounting Style Cable - Modular
Orientation Vertical
Voltage Rating (Vdc) 20
Current Rating (A) 4
Number of Conductors 2
Internal Switch(es) 0
Shielding No

Technical Docs

Datasheet 3D Model
