PP3-002D

PP3-002D

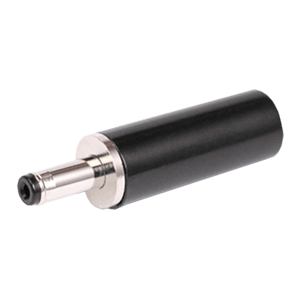

1.35 x 3.5 mm, Round Cover, Modular, Dc Power Plug Connector

Datasheet

Specifications

Type Description
Select
Connector Type Plug
Inner Diameter (mm) 1.35
Outer Diameter (mm) 3.5
Insertion Depth/Length (mm) 9
Mounting Style Cable - Modular
Voltage Rating (Vdc) 24
Current Rating (A) 5
Number of Conductors 2
Internal Switch(es) 0
Shielding No

Technical Docs

Datasheet 3D Model
