PP-017

PP-017

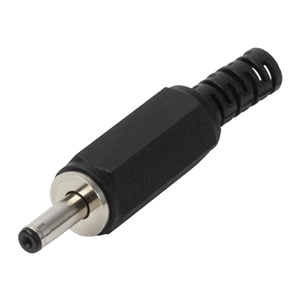

0.9 x 3.2 mm, Hexagonal Cover, Strain Relief, Modular, Dc Power Plug Connector

Datasheet

Specifications

Type Description
Select
Connector Type Plug
Inner Diameter (mm) 0.9
Outer Diameter (mm) 3.2
Insertion Depth/Length (mm) 9
Mounting Style Cable - Modular
Voltage Rating (Vdc) 24
Current Rating (A) 2
Number of Conductors 2
Internal Switch(es) 0
Shielding No

Technical Docs

Datasheet 3D Model
