PP-016

PP-016

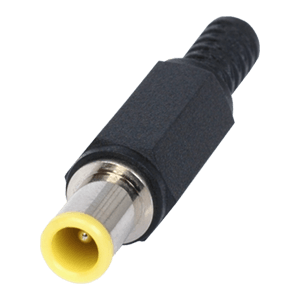

1.4 x 4.3 mm, Hexagonal Cover, Strain Relief, Modular, Dc Power Plug Connector

Datasheet

Specifications

Type Description
Select
Connector Type Plug
Inner Diameter (mm) 1.4
Outer Diameter (mm) 4.3
Insertion Depth/Length (mm) 9.5
Mounting Style Cable - Modular
Voltage Rating (Vdc) 24
Current Rating (A) 6
Number of Conductors 2
Internal Switch(es) 0
Shielding No

Technical Docs

Datasheet 3D Model
