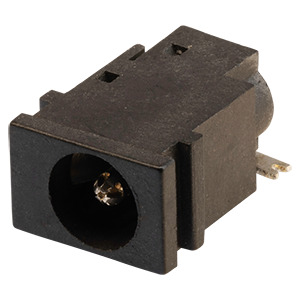

PJ1-021-SMT-TR
1.65 x 5.15 mm, 5.0 A, Horizontal, Surface Mount (SMT), Dc Power Jack Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 1.65 |
|
| Outer Diameter (mm) | 5.15 |
|
| Insertion Depth/Length (mm) | 8.1 |
|
| Mounting Style | Surface Mount |
|
| Orientation | Horizontal |
|
| Voltage Rating (Vdc) | 24 |
|
| Current Rating (A) | 5 |
|
| Number of Conductors | 2 |
|
| Internal Switch(es) | 1 |
|
| Shielding | No |
|
| Dimensions LxWxH (mm) | 12.5 x 9 x 6 |
|
