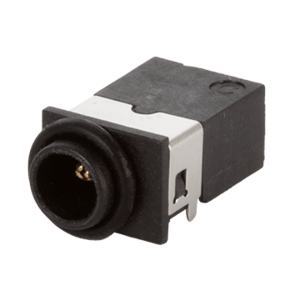

PJ-117DH-TR-X7
1.3 x 3.8 mm, 5.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector, IPX7
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 1.3 |
|
| Outer Diameter (mm) | 3.8 |
|
| Insertion Depth/Length (mm) | 8.5 |
|
| Mounting Style | Through Hole |
|
| Current Rating (A) | 5 |
|
| Orientation | Horizontal |
|
| Voltage Rating (Vdc) | 30 |
|
| Number of Conductors | 3 |
|
| Shielding | Yes |
|
| IP Rating | IPX7 |
|
| Dimensions LxWxH (mm) | 12.7 x 9 x 6.2 |
|
