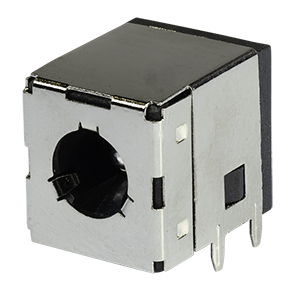

PJ-080BH
2.5 x 6.4 mm, 10.0 A, Horizontal, Through Hole, Shielded, Dc Power Jack Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 2.5 |
|
| Outer Diameter (mm) | 6.4 |
|
| Insertion Depth/Length (mm) | 11.1 |
|
| Mounting Style | Through Hole |
|
| Orientation | Horizontal |
|
| Voltage Rating (Vdc) | 36 |
|
| Current Rating (A) | 10 |
|
| Number of Conductors | 2 |
|
| Internal Switch(es) | 0 |
|
| Shielding | Yes |
|
| Dimensions LxWxH (mm) | 12.5 x 15.5 x 13.5 |
|
