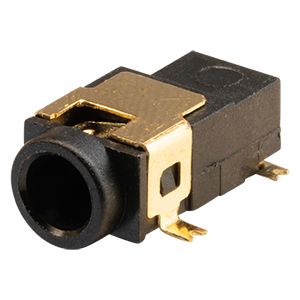

PJ-028-SMT-TR
0.8 x 3.35 mm, 4 A, Horizontal, Surface Mount (SMT), Shielded, Dc Power Jack Connector
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 0.8 |
|
| Outer Diameter (mm) | 3.35 |
|
| Insertion Depth/Length (mm) | 7.7 |
|
| Mounting Style | Surface Mount |
|
| Orientation | Horizontal |
|
| Voltage Rating (Vdc) | 24 |
|
| Current Rating (A) | 4 |
|
| Number of Conductors | 2 |
|
| Internal Switch(es) | 0 |
|
| Dimensions LxWxH (mm) | 11 x 6 x 4.3 |
|
| Shielding | Yes |
|
