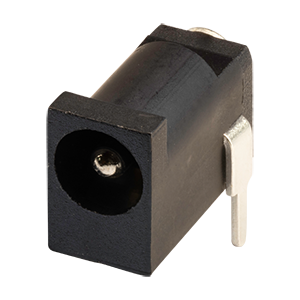

PJ-018H

PJ-018H
PJ-018H Alternate View
PJ-018H Alternate View

PJ-018H

1.65 x 4.2 mm, 3.5 A, Horizontal, Through Hole, Dc Power Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Inner Diameter (mm) 1.65
Outer Diameter (mm) 4.2
Insertion Depth/Length (mm) 6.6
Mounting Style Through Hole
Orientation Horizontal
Voltage Rating (Vdc) 16
Current Rating (A) 3.5
Number of Conductors 2
Internal Switch(es) 1
Shielding No
Dimensions LxWxH (mm) 11.4 x 5 x 7.4
