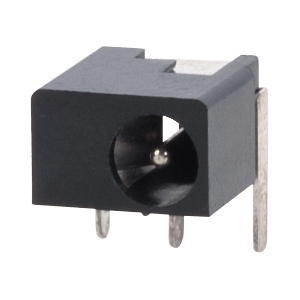

Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Jack |
|
| Inner Diameter (mm) | 1.3 |
|
| Outer Diameter (mm) | 4.2 |
|
| Insertion Depth/Length (mm) | 7.5 |
|
| Mounting Style | Through Hole |
|
| Orientation | Horizontal |
|
| Voltage Rating (Vdc) | 24 |
|
| Current Rating (A) | 2.5 |
|
| Number of Conductors | 2 |
|
| Internal Switch(es) | 1 |
|
| Shielding | No |
|
| Dimensions LxWxH (mm) | 9 x 8.5 x 5.5 |
|
