PJ-003B

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

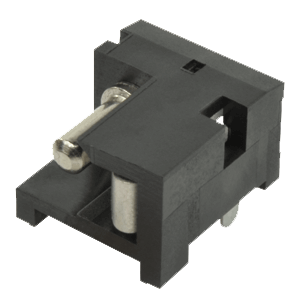

2.5 x 6.5 mm, 2.5 A, Horizontal, Through Hole, Open Frame, Dc Power Jack Connector


Specifications

Type Description
Select
Connector Type Jack
Inner Diameter (mm) 2.5
Insertion Depth/Length (mm) 6.5
Mounting Style Through Hole
Orientation Horizontal
Voltage Rating (Vdc) 24
Current Rating (A) 2.5
Number of Conductors 2
Internal Switch(es) 1
Shielding No
Dimensions LxWxH (mm) 12.3 x 10.8 x 8.4
