SR-2540-01

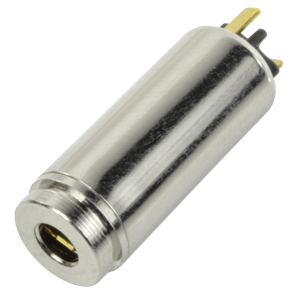

SR-2540-01 Alternate View

SR-2540-01

2.5 mm, Stereo, Overmold, Audio Receptacle Connector

Datasheet

Specifications

Type Description
Select
Connector Type Receptacle
Audio Standard (mm) 2.5
Current Rating (A) 1
Internal Switch(es) 0
Voltage Rating (Vdc) 12
Mounting Style Cable - Overmold
Number of Conductors 4
Orientation Vertical
Shielding No
Number of Ports 1
