SJD1-3201-54
SJD1-3201-54
SJD1-3201-54 Alternate View

SJD1-3201-54

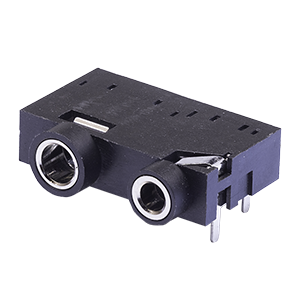

3.5/2.5 mm, Dual Stack, Stereo, Right Angle, Through Hole, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 2.5, 3.5
Mounting Style Through Hole
Number of Conductors 3
Orientation Horizontal
Voltage Rating (Vdc) 12
Current Rating (A) 1
Shielding No
Internal Switch(es) 3
Number of Ports 2
Color Black
