SJ2-35954A-SMT-TR
SJ2-35954A-SMT-TR
SJ2-35954A-SMT-TR Alternate View

SJ2-35954A-SMT-TR

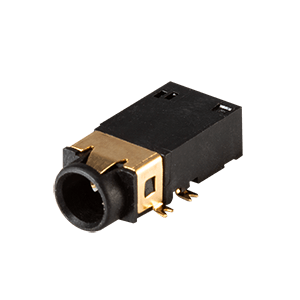

3.5 mm, Stereo, Right Angle, Surface Mount (SMT), 4 Conductors, 0 Internal Switches, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Current Rating (A) 1
Mounting Style Surface Mount
Shielding No
Internal Switch(es) 0
Number of Conductors 4
Orientation Horizontal
Series SJ2-3595X-SMT
Number of Ports 1
Color Black
Voltage Rating (Vdc) 12
