SJ2-3594A-SMT-TR

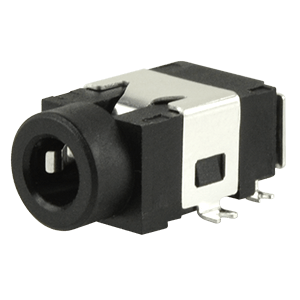

Front - Right Facing
Back View

SJ2-3594A-SMT-TR

3.5 mm, Stereo, Right Angle, Surface Mount (SMT), Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Internal Switch(es) 0
Mounting Style Surface Mount
Number of Conductors 4
Orientation Horizontal
Voltage Rating (Vdc) 30
Current Rating (A) 1
Shielding No
Number of Ports 1
Color Black
