SJ2-35813A-SMT-TR

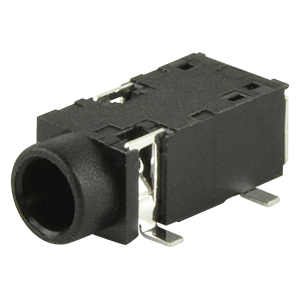

Front - Right
Back View

SJ2-35813A-SMT-TR

3.5 mm, Stereo, Right Angle, Surface Mount (SMT), 3 Conductors, 0 Internal Switches, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Mounting Style Surface Mount
Shielding No
Internal Switch(es) 0
Voltage Rating (Vdc) 12
Current Rating (A) 1
Number of Conductors 3
Orientation Horizontal
Series SJ2-3581X-SMT
Number of Ports 1
Color Black
