SJ1-42534-SMT-TR
SJ1-42534-SMT-TR
SJ1-42534-SMT-TR Alternate View

SJ1-42534-SMT-TR

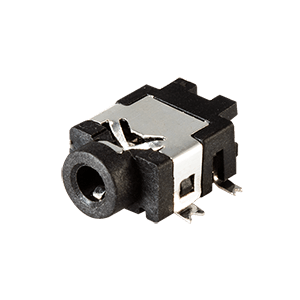

2.5 mm, Stereo, Right Angle, Surface Mount (SMT), 4 Conductors, 0 Internal Switches, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 2.5
Current Rating (A) 0.3
Number of Conductors 4
Mounting Style Surface Mount
Orientation Horizontal
Internal Switch(es) 0
Number of Ports 1
Color Black
Series SJ1-4253X-SMT
Voltage Rating (Vdc) 16
