SJ1-3543N
SJ1-3543N
SJ1-3543N Alternate View

SJ1-3543N

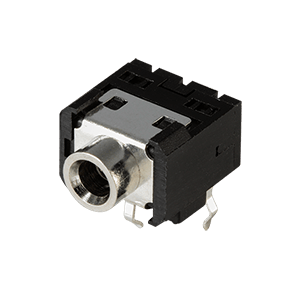

3.5 mm Right-Angle Stereo Jack, 3 Pin PCB Mount, Non-Threaded

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Current Rating (A) 1
Mounting Style Through Hole
Shielding No
Internal Switch(es) 0
Number of Conductors 3
Orientation Horizontal
Series SJ1-354XN
Number of Ports 1
Color Black
Voltage Rating (Vdc) 12
