SJ1-3533NS

SJ1-3533NS

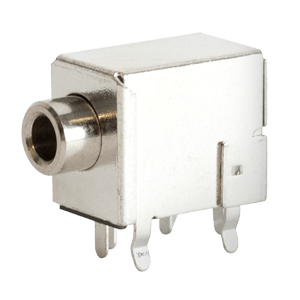

3.5 mm Stereo Jack, 3 Pin Right-Angle, PCB Mount, Full Shield, Metal Bushing

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Current Rating (A) 0.3
Mounting Style Through Hole
Shielding Yes
Internal Switch(es) 0
Number of Conductors 3
Orientation Horizontal
Series SJ1-353XNS
Number of Ports 1
Color Black
Voltage Rating (Vdc) 12
