SJ1-3514
SJ1-3514
SJ1-3514 Alternate View

SJ1-3514

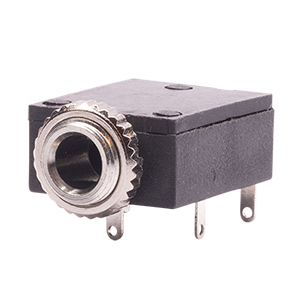

3.5 mm, Stereo, Right Angle, Through Hole, Threaded Bushing, 3 Conductors, 1 Internal Switch, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Current Rating (A) 1
Mounting Style Through Hole
Shielding No
Number of Conductors 3
Orientation Horizontal
Series SJ1-351X
Number of Ports 1
Color Black
Voltage Rating (Vdc) 12
