SJ-43615TS-SMT-TR
SJ-43615TS-SMT-TR
SJ-43615TS-SMT-TR Alternate View
SJ-43615TS-SMT-TR Alternate View

SJ-43615TS-SMT-TR

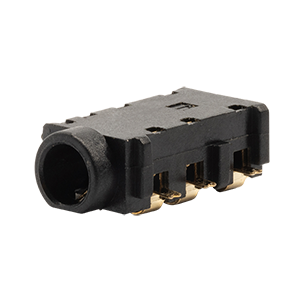

3.5 mm, Right Angle, Mid Mount (SMT), 4 Conductors, 1 Internal Switch, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Current Rating (A) 1
Mounting Style Mid Mount SMT
Shielding No
Number of Conductors 4
Orientation Horizontal
Series SJ-4361X-SMT
Number of Ports 1
Color Black
Voltage Rating (Vdc) 12
