SJ-3503-SMT
SJ-3503-SMT

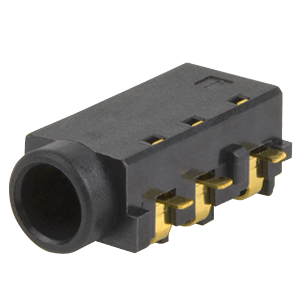

SJ-3503-SMT Alternate View
SJ-3503-SMT Alternate View

SJ-3503-SMT-TR

3.5 mm, Stereo, Right Angle, Mid Mount (SMT), Ring and Tip Switches, 3 Conductors, 2 Internal Switches, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Mounting Style Mid Mount SMT
Number of Conductors 3
Orientation Horizontal
Voltage Rating (Vdc) 12
Current Rating (A) 1
Shielding No
Number of Ports 1
Color Black
