SJ-3501-SMT-TR
SJ-3501-SMT-TR
SJ-3501-SMT-TR Alternate View

SJ-3501-SMT-TR

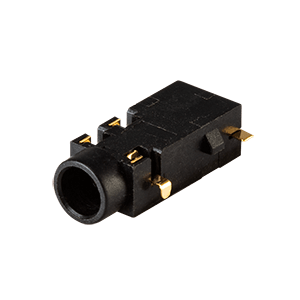

3.5 mm, Stereo, Right Angle, Mid Mount (SMT), Dual Ring and Tip Contacts, 3 Conductors, 0 Internal Switches, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Mounting Style Mid Mount SMT
Number of Conductors 3
Orientation Horizontal
Voltage Rating (Vdc) 12
Current Rating (A) 1
Shielding No
Number of Ports 1
Color Black
