SJ-2509N

SJ-2509N

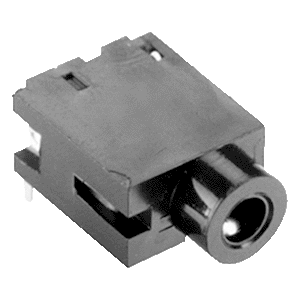

2.5 mm, Stereo, Right Angle, Through Hole, 3 Conductors, 0 Internal Switches, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 2.5
Number of Conductors 3
Mounting Style Through Hole
Orientation Horizontal
Voltage Rating (Vdc) 12
Current Rating (A) 1
Shielding No
Number of Ports 1
Color Black
