MJ-3502

MJ-3502

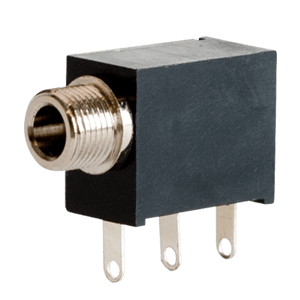

3.5 mm, Mono, Right Angle, Through Hole, Threaded Bushing, 2 Conductors, 1 Internal Switch, Audio Jack Connector

Datasheet

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Mounting Style Through Hole
Number of Conductors 2
Orientation Horizontal
Voltage Rating (Vdc) 12
Current Rating (A) 1
Shielding No
Number of Ports 1
Color Black
