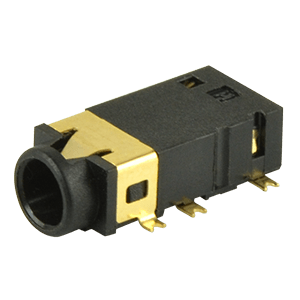

SJ2-35954C-SMT-TR
SJ2-3595X-SMT Alternate View Front
SJ2-3595X-SMT Alternate View Back

SJ2-35954C-SMT-TR

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

3.5 mm, Stereo, Right Angle, Surface Mount (SMT), 4 Conductors, 1 Internal Switch, Audio Jack Connector

Specifications

Type Description
Select
Connector Type Jack
Audio Standard (mm) 3.5
Current Rating (A) 1
Mounting Style Surface Mount
Shielding No
Number of Conductors 4
Orientation Horizontal
Series SJ2-3595X-SMT
Internal Switch(es) 1
Number of Ports 1
Color Black
Voltage Rating (Vdc) 12
