CBL-UA3-UA3 Series

CBL-UA3-UA3 Series
CBL-UA3-UA3 Series
CBL-UA3-UA3 Series Alternate Gray View
CBL-UA3-UA3 Series Alternate White View

CBL-UA3-UA3-10BP

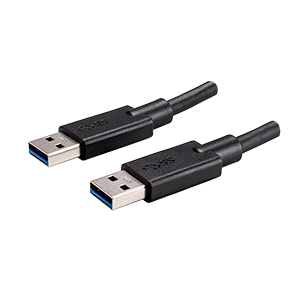

USB Cable, Type A Plug to Type A Plug, USB 3.1 Gen 1, 1 M, Black, PVC

Datasheet

Specifications

Type Description
Select
Connector 1 Type A Plug
Connector 2 Type A Plug
Cable Length (mm) 1000
Shielding Yes
Wire Gauge (AWG) 28
Cable Style Round
Jacket Material PVC
Voltage Rating (Vdc) 30
Current Rating (A) 1.5
Color Black
USB Standard USB 3.2 Gen 1
Wire Diameter (mm) 5.5
Series CBL-UA3-UA3

Technical Docs

Datasheet

Other Resources

USB Cable Mating Guide
