CDM817-03A-01MRA-2M-67

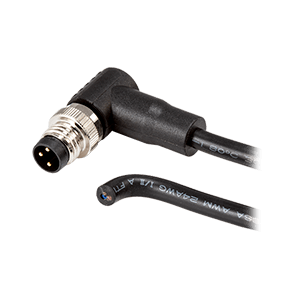

Circular Cable Assembly, M8 Male Plug, Blunt Cut Cable, 3 Pins, Right-Angled, Unshielded, A-Coding, 60 V, 3 A, Screw Copper Alloy, M8 x 1.0, 2 M, 24 AWG, Black, PVC, IP67

Datasheet

Specifications

Type Description
Select
Connector 1 M8 Male Plug
Connector 1 Mounting Style Free Hanging
Connector 1 Positions 3
Connector 1 Coding A
Connector 1 Orientation Right-Angled
Connector 1 Mounting Thread Size M8 x 1.0
Connector 2 Blunt Cut Cable
Connector 2 Mounting Style Wire Leads
Connector 2 Coding None
Connector 2 Orientation None
Connector 2 Mounting Thread Size None
Voltage Rating (Vac) 60
Current Rating (A) 3
Cable Length (mm) 2000
Wire Gauge (AWG) 24
Jacket Material PVC
Screw Material Copper Alloy
Shielding No
Shell Size (mm) 8
Cable Style Round
Shell Finish Brass with Nickel Plating
Contact Finish Gold Plated
Color Black
Operating Temp Range (°C) -25 ~ 80
IP Rating IP67
Series CDM817
