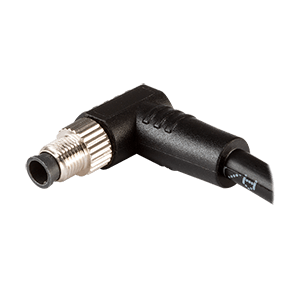

CDM517-04A-01MRA-3M-67

CDM517-04A-01MRA-3M-67
CDM517-04A-01MRA-3M-67 Alternate View
CDM517-04A-01MRA-3M-67 Alternate View

CDM517-04A-01MRA-3M-67

Circular Cable Assembly, M5 Male Plug, Blunt Cut Cable, 4 Pins, Right Angle, Unshielded, A-Coding, 60 V, 1 A, Screw Copper Alloy, M5 x 0.5, 3 M, 26 AWG, Black, PVC, IP67

Datasheet

Specifications

Type Description
Select
Connector 1 M5 Male Plug
Cable Length (mm) 3000
Jacket Material PVC
Connector 2 Blunt Cut Cable
Shielding No
Connector 1 Mounting Thread Size M5 x 0.5
Wire Gauge (AWG) 26
Cable Style Round
Color Black
Connector 2 Mounting Thread Size None
Current Rating (A) 1
Connector 1 Mounting Style Free Hanging
Connector 1 Orientation Right-Angled
Connector 1 Positions 4
Connector 1 Coding A
Connector 2 Coding None
Connector 2 Mounting Style Wire Leads
Connector 2 Orientation None
Contact Finish Gold Plated
Screw Material Copper Alloy
Shell Finish Brass with Nickel Plating
IP Rating IP67
Shell Size (mm) 5
Series CDM517
