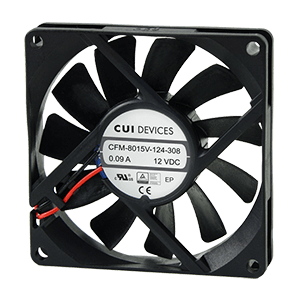

CFM-8020V-226-300-20
Recommended Replacement
CFM-8020BF-235-346-20
24 V, 0.09 A, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal
CFM-8020CF-235-346-20
24 V, 0.06 A, 80 x 80 x 15 mm, Dc Fan, Tachometer Signal
24 V, 49 mA, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Air Flow (CFM) | 29 |
|
| Rated Speed (RPM) | 2600 |
|
| Static Pressure (inH2O) | 0.12 |
|
| Noise (dBA) | 30 |
|
| Rated Voltage (Vdc) | 24 |
|
| Max Input Current (mA) | 49 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 80 x 80 x 20 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-80V |
|
